ConceptSystem 77
ConceptSystem 77 is a versatile and reliable door system with a strong legacy. It offers a complete range of design options and safety features, including fireproof and bulletproof variants. Incorporate a trusted aluminium solution that meets standard performance levels.
Safe and versatile door solution to match any project needs
Well-balanced price-performance-features mix
Reliable doors that last a lifetime
Endless possibilities
Click on the buttons below to explore all variants.
Type
Automatic Door
Often used in public buildings and shop fronts, automatic doors open sideways when they detect movement, granting easy access in an instant.
Design
Functional
The standard product offers a Functional design, which means it will fit any building style.
Insulation
High Insulation
Improve your indoor comfort with this High Insulation system upgrade.
Safety
Anti Panic

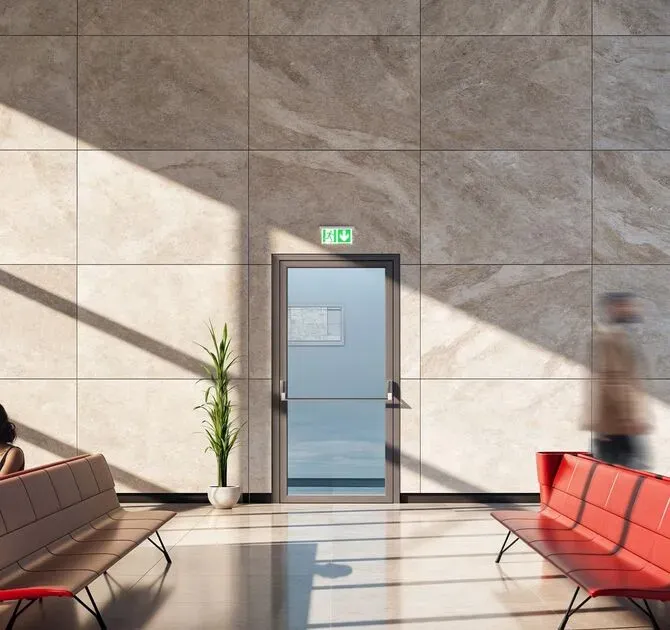

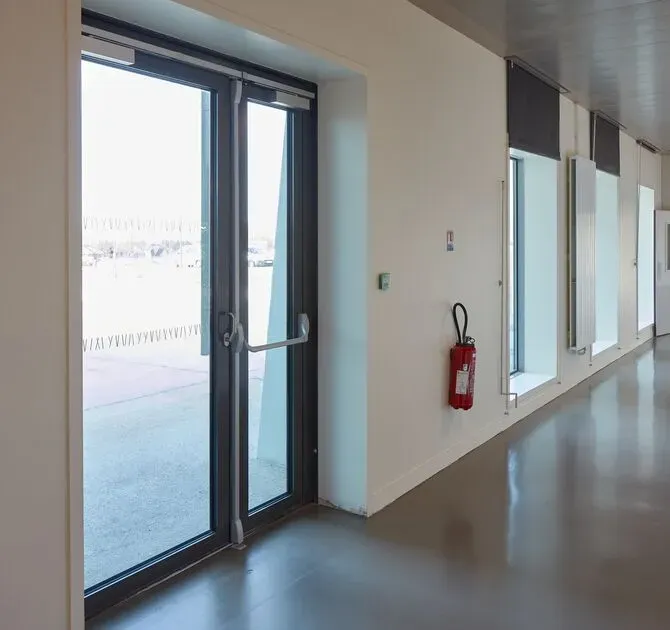

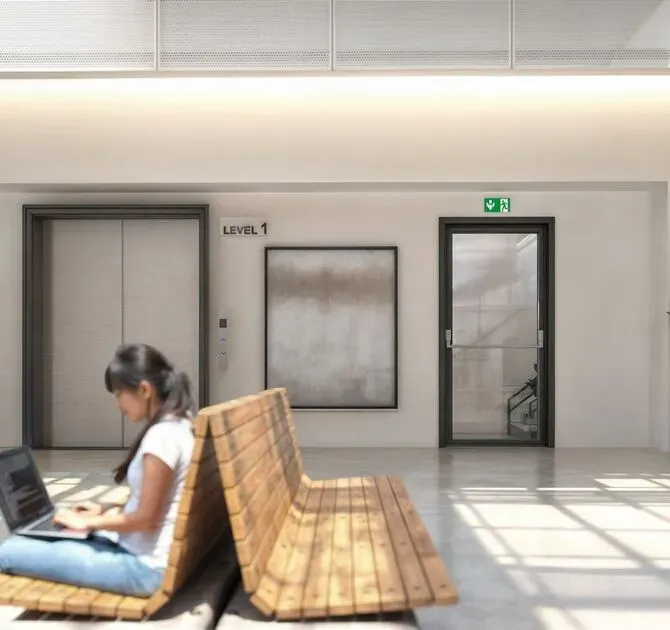

Mostly applied in public buildings such as shops or hospitals, the Anti Panic door offers an easy exit in times of urgent evacuation.
Product options
Personalise ConceptSystem 77 with the following options
Access Control
Making your home smart and connected
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Concealed Hinges
The details are the design, concealed hinges are the finishing touch
Low Threshold
Easy access, cleaner look
Panic
Tried and tested, for peace of mind.
Softclose
Combines safety and comfort
Zero Threshold
Entrance without boundaries, even with continuous flooring.
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
High
Uf = 1.8 W/m²K
Ud = 1.4 W/m²K
Air-Water-Wind
High
4 / 7A / C2
Acoustics
High
Rw(C;Ctr) = 42(-1;-4) dB

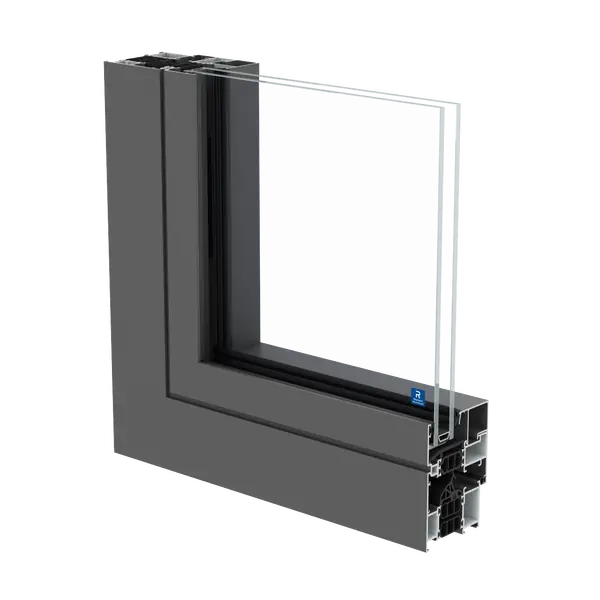

System Dimensions
Min. Frame-Vent Width 150 mm
Depth Frame 68 mm
Height Vent
Max 3000 mm
Labels & Certifications
