EcoSystem 50

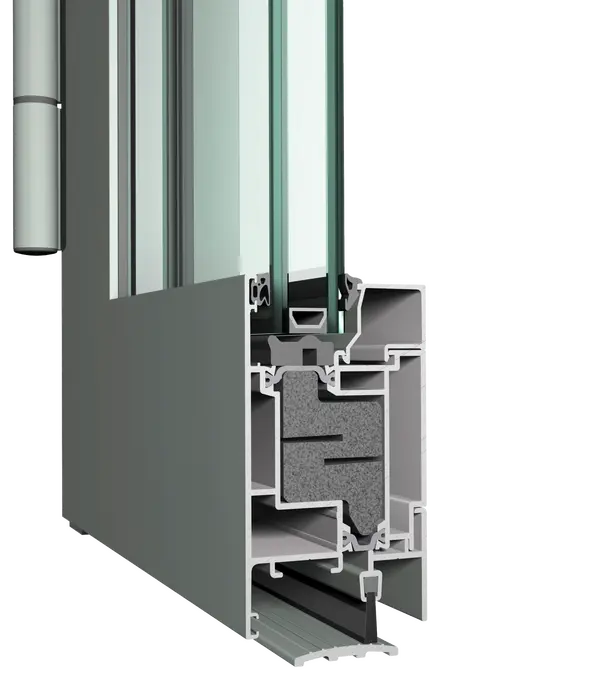

EcoSystem 50 insulated doors offer clean design options at a competitive price. Thanks to their limited built-in depth and hidden hinges, the aluminium profiles effortlessly integrate into any project design.
Well balanced price-quality-feature mix
Minimal build-in depth for insulated system
Wide range of opening types (Automatic Door, Swing Door,...)
Endless possibilities
Click on the buttons below to explore all variants.
Type
Entrance Door
Entrance Doors connect your building to the world. Their sturdy design ensures lifelong quality.
Design
Functional
The standard product offers a Functional design, which means it will fit any building style.
Insulation
High Insulation
The High Insulation + variant offers the best insulation for glazed doors in this series.
Safety
Anti Panic Door
Mostly applied in public buildings such as shops or hospitals, the Anti Panic door offers an easy exit in times of urgent evacuation.
Product options
Personalise EcoSystem 50 with the following options
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Low Threshold
Easy access, cleaner look
Panic
Tried and tested, for peace of mind.
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
Ud = 1.6 W/m²K
Air-Water-Wind
4 / 4A / C2
Acoustics
Medium
Rw(C;Ctr) = 40(-2;-4) dB
System Dimensions
Min. Frame-Vent Width 146 mm
Depth Frame 50 mm
Height Vent
Max 3000 mm
