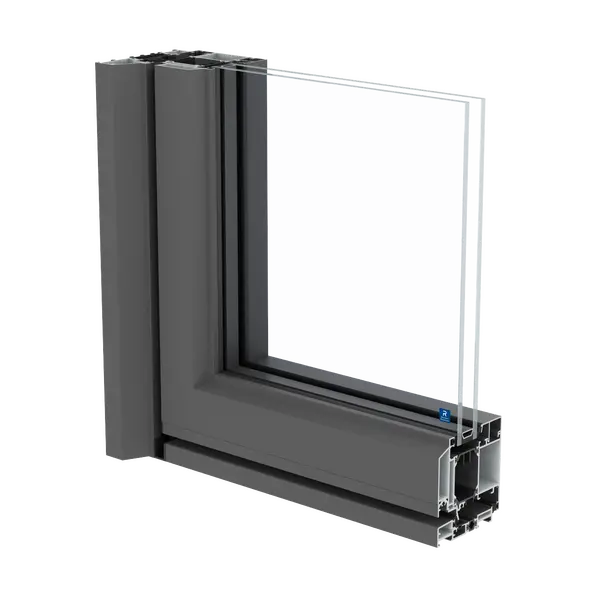

SlimLine 38
Perfect for both minimalistic new-builds and renovation projects, SlimLine 38s timeless steel look design blends perfectly with any architectural style. The slender aluminium door solution comes in multiple design variants and offers refined quality in every detail.
Slim steel-look design in a variety of styles
Futureproof and durable door solution
Crisp, high-quality finishing in every detail



Endless possibilities
Click on the buttons below to explore all variants.
Type
Entrance Door
Entrance Doors connect your building to the world. Their sturdy design ensures lifelong quality.
Insulation
High Insulation
Improve your indoor comfort with this High Insulation system upgrade.
Safety
Burglarproof
The system's burglarproof variant makes buildings safe and secure against possible intruders.
Product options
Personalise SlimLine 38 with the following options
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Concealed Hinges
The details are the design, concealed hinges are the finishing touch
Low Threshold
Easy access, cleaner look
Panic
Tried and tested, for peace of mind.
Zero Threshold
Entrance without boundaries, even with continuous flooring.
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
High
Uf = 1.8 W/m²K
Ud = 1 W/m²K
Air-Water-Wind
Medium
4 / 8A / C3
Acoustics
Extreme
Rw(C;Ctr) = 45(-1;-5) dB
System Dimensions
Min. Frame-Vent Width 72.5 mm
Depth Frame 99 mm
Height Vent
Max 3000 mm
Performance
Insulation
Thermal insulation (Best) - Uf
1.8 W/m²K
Uw Dependencies
Single inward opening door: Ug 0.6W/m²K, warm edge spacer, @1.23x2.18m, 36mm glass
Thermal insulation - Ud
1 W/m²K
Comfort
Air tightness
Class 4 (600Pa)
Water tightness
Class 8A (450Pa)
Wind load resistance
Class C3 (1200Pa)
Acoustics - Rw(C;Ctr)
45(-1;-5) dB
Durability
Class 6 (200000 cycles)
Safety & Security
Burglar resistance
RC2 - PAS 24
Fire resistance
EW 30
* Performances and properties depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Properties
Max. dimensions & weight
Max. height of vent
3000 mm
Min. width of vent
750 mm
Max. width of vent
1400 mm
Max. weight of vent
160 kg
Max. weight of glass
300 kg
Sightlines
Min. frame width (inward opening)
38.5 mm
Min. vent width (inward opening)
23 mm
Min. frame-vent width (inward opening)
72.5 mm
Min. frame width (outward opening)
19 mm
Min. vent width (outward opening)
60.5 mm
Min. frame-vent width (outward opening)
86 mm
Min. width transom profile
52 mm
Profile design slope
24.2 degrees
Min. height threshold
0 mm
Depth frame
99 mm
Depth Vent
86 mm
Depth frame-vent
109 mm
Glazing
Rebate height
13.5 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - Glazing bead
Labels & Certifications
