Vision 7
Vision 7 is the latest evolution in the Vision range of commercial doors. By default the system is offered with slim bulb styles to prevent finger pinching. This makes it suitable for a wide range of ground floor applications, including schools and leisure facilities, hospitals, shopping centres and offices. ADA compliant 0.5 inch threshold is included.
Heavy duty swing doors with anti finger trap
Slim visual width on bulb style of only 76mm
Achieves Ud value as low as 1.1W/m2K
Endless possibilities
Click on the buttons below to explore all variants.
Type
Swing Door
The standard product offers anti-finger trap functionality, making it suitable for a wide range of ground floor applications.
Design
Functional
The standard product offers anti-finger trap functionality, making it suitable for a wide range of ground floor applications.
Insulation
High Insulation
Achieves U-values as low as 1.1Wm2K, ensuring the product is ready for today and future proofed for tomorrow.
Safety

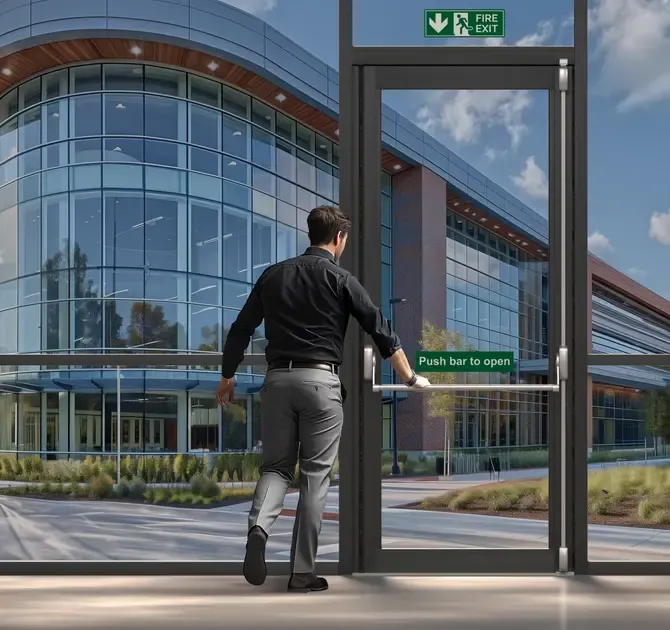

Anti Panic Door
Mostly applied in public buildings such as shops or hospitals, the Anti Panic door offers an easy exit in times of urgent evacuation.
Product options
Personalise Vision 7 with the following options
Anti-finger trap
Decreased risk in public places
Concealed Hinges
The details are the design, concealed hinges are the finishing touch
Low Threshold
Easy access, cleaner look
Panic
Tried and tested, for peace of mind.
Softclose
Combines safety and comfort
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
Ud = 1.1 W/m²K
Air-Water-Wind
2 / 2A / C2

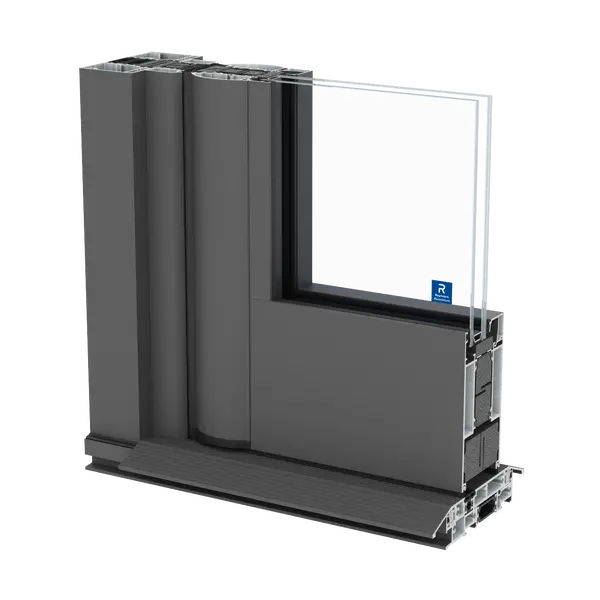

System Dimensions
Min. Frame-Vent Width 144 mm
Depth Frame 100 mm
Height Vent
Max 3000 mm
Labels & Certifications
