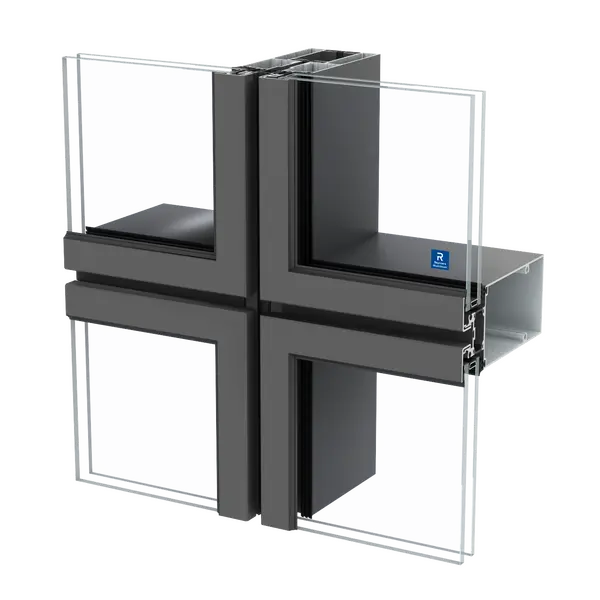

ConceptWall 86
ConceptWall 86 is the perfect curtain wall system for large building projects. The well-insulated aluminium profiles are both easy to produce and easy to install, which makes them an efficient high-performance unitised façade solution.
Robust system with minimal joints between the elements
Excellent thermal and AWW performances
High insulative compared with comparable sections
Endless possibilities
Click on the buttons below to explore all variants.
Type
Breathable
This product features a double skin, which increases its ability to stabilize temperatures inside the building.
Design
Functional
An unitised façade allows more work to be done in the workshop, increasing precision. At the same time decreases the time spent on site, to decrease installation time/cost.
Insulation
High Insulation
This unitised façade’s highly insulated variant makes sure you achieve better insulation values.
Product options
Personalise ConceptWall 86 with the following options
Balustrade
Safety can equal beauty
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Glass Corner
Glass to glass connection without profiles obstructing the view
Motorised
Comfortable to use, even remotely
Solar Shading
Options for passive cooling.
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
Passive
Air-Water-Wind
Extreme
900 / RE1200 / B5
Acoustics
High
Rw(C;Ctr) = 41(-2;-6) dB
Weight Glass
Max 300 kg
Labels & Certifications
