SlimWall 35

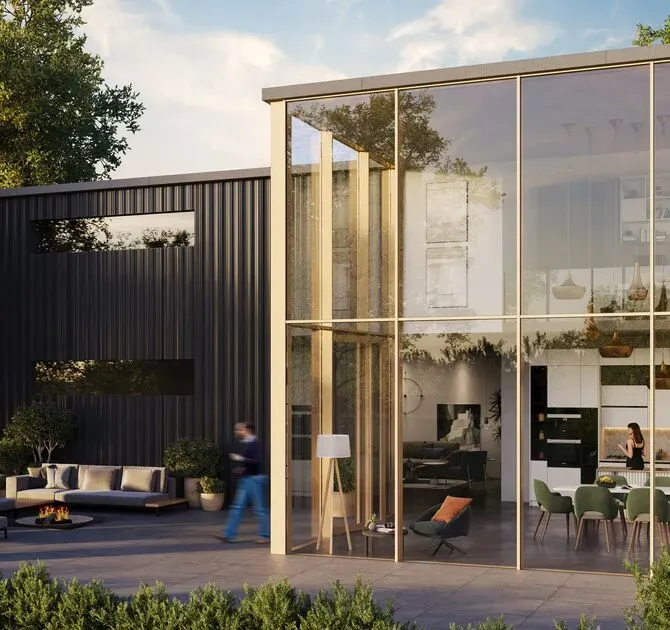

SlimWall 35 is a slender stick façade system that combines elegant aesthetics with Passive House certified performance up to two floors high. Create wide-open views that last a lifetime.
Minimalistic design and creative freedom
Smart, simple and sustainable solution
Excellent thermal and AWW performance

Endless possibilities
Click on the buttons below to explore all variants.
Design

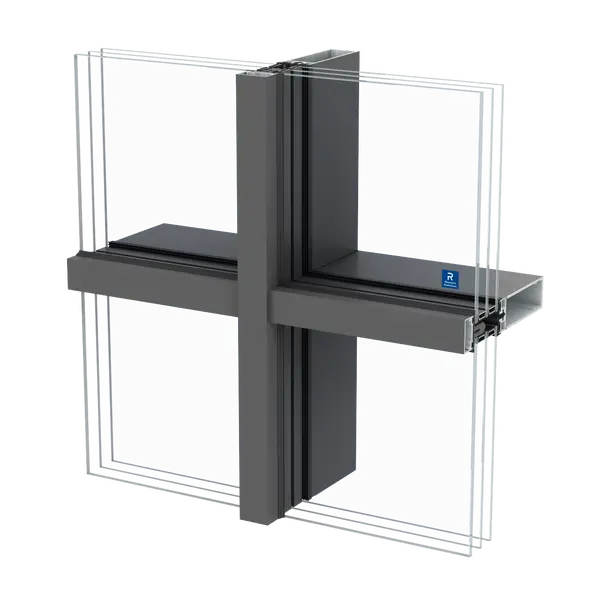

Mullion Transom
SlimWall 35 is a slender stick façade system that combines elegant aesthetics with Passive House certified performance up to two floors high.
Insulation
Standard
SlimWall 35 is a slender stick façade system that combines elegant aesthetics with Passive House certified performance up to two floors high. Create wide-open views that last a lifetime.
Safety
Burglarproof
SlimWall 35 is a slender stick façade system that combines elegant aesthetics with Passive House certified performance up to two floors high. Create wide-open views while keeping your building safe and secure.
Product options
Personalise SlimWall 35 with the following options
Clip on cover cap
Choose the look that fits your project.
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Solar Shading
Options for passive cooling.
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
Passive
Ucw = 0.8 W/m²K
Air-Water-Wind
High
1200 / RE1200 / A5
Weight Glass
Max 450 kg
Performance
Insulation
Thermal insulation (Best) - Uf
0.71 W/m²K
Uw Dependencies
Ug 0.7W/m²K, warm edge spacer, @1.2x2.5m, 52mm glass
Thermal insulation - Ucw
0.8 W/m²K
Comfort
Air tightness
AE 1200 (1200Pa)
Water tightness
RE1200 (1200 Pa)
Wind load resistance
Class A5 (2000Pa)
Safety & Security
Burglar resistance
RC2
Impact resistance
I5 - E5
* Performances and properties depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Properties
Max. dimensions & weight
Max. weight of glass
450 kg
Min. intertia mullion - Ix
76.961 cm4
Max. intertia mullion - Ix
572.545 cm4
Min. intertia transom - Ix
70.5 cm4
Max. intertia transom - Ix
545.812 cm4
Min. intertia transom - Iy (glass load)
13.309 cm4
Max. intertia transom - Iy (glass load)
30.308 cm4
Sightlines
Min. width transom profile
35 mm
Min. visible width (interior view)
35 mm
Min. visible width (exterior view)
35 mm
Min. depth mullion
89 mm
Max. depth mullion
194 mm
Min. depth transom
88.5 mm
Max. depth transom
193.5 mm
Glazing
Rebate height
10 mm
Glazing method
Dry glazing / Siliconized glazing / External glazing / Pressure plate glazing
Fixed Glazing
Min. glass thickness - frame/element
24 mm
Max. glass thickness - frame/element
57 mm
Min. glass thickness - vent
24 mm
Max. glass thickness - vent
57 mm
Labels & Certifications
