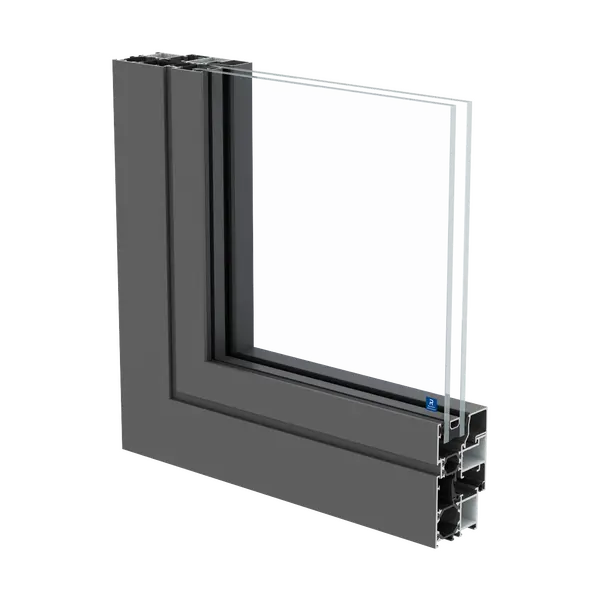

EcoSystem 50
EcoSystem 50 is a quality system for windows and doors that combines aesthetic design and energy efficiency. Thanks to the optional, cleverly hidden hinges and a minimal built-in depth, this aluminium solution sports a minimalistic look.
Well balanced price-quality-feature mix
Minimal build-in depth for insulated system
Lower embodied carbon footprint
Endless possibilities
Click on the buttons below to explore all variants.
Design
Functional
The standard product offers a Functional design, which means it will fit any building style.
Insulation
High Insulation+
Improve your indoor comfort with this High Insulation system upgrade.
Safety
Burglarproof
The system comes in a burglarproof variant for additional peace of mind.
Product options
Personalise EcoSystem 50 with the following options
Balustrade
Safety can equal beauty
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Concealed Hinges
The details are the design, concealed hinges are the finishing touch
Flyscreen
Enjoy cool summer evenings, without losing sleep
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
Medium
Uw = 2.6 W/m²K
Air-Water-Wind
High
4 / 9A / C4
Acoustics
Medium
Rw(C;Ctr) = 38(-1;-2) dB
System Dimensions
Min. Frame-Vent Width 86 mm
Depth Frame 50 mm
System limitation
Max. Height Vent – 2200 mm
Max. Weight Vent – 120 kg
