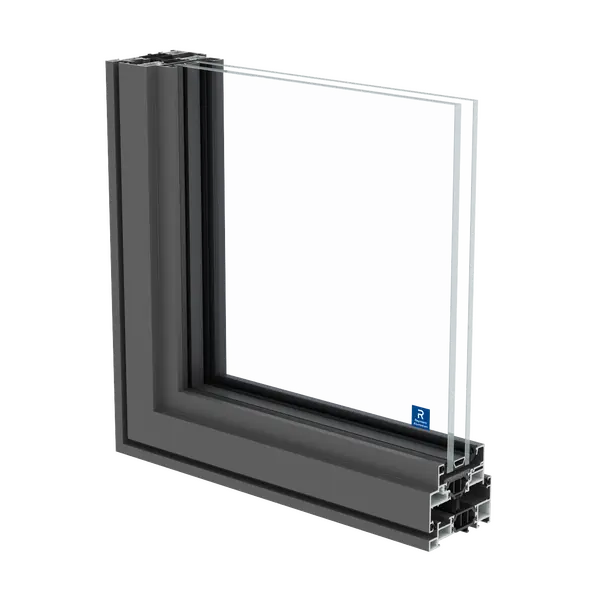

SlimLine 68
SlimLine 68 outward-opening windows are known for their ultra-slim aluminium profiles. The well-balanced solution is perfect for renovation, retaining the original daylight, but increasing weather resistance and insulation. Can be combined with SlimLine 38 doors.
Ultra slim sightlines in outward opening
High level of comfort with excellent acoustic, thermal and weather sealing performances
Safe and secure with SBD and PAS24 rating

Endless possibilities
Click on the buttons below to explore all variants.
Design
Classic
This product has been developed to mimic the slender look of steel windows, and the Classic variant sports an inclined surface.
Insulation
High Insulation
The High Insulation variant offers the best thermal performance in this series.
Safety
Burglarproof
The system comes in a burglarproof variant for additional peace of mind.
Product options
Personalise SlimLine 68 with the following options
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Concealed Hinges
The details are the design, concealed hinges are the finishing touch
The available options depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Endless possibilities
Thermal Insulation
Uw = 1.1 W/m²K
Air-Water-Wind
Extreme
4 / E1200 / C5
Acoustics
Extreme
Rw(C;Ctr) = 47(-2;-7) dB
System Dimensions
Depth Frame 78 mm
System limitation
Max. Height Vent – 1500 mm
Max. Weight Vent – 50 kg
Performance
Insulation
Thermal insulation - Uw
1.1 W/m²K
Uw Dependencies
Based on triple glazing, with windows size and configuration as per BS EN 14351
Comfort
Air tightness
Class 4 (600Pa)
Water tightness
Class E1200 (1200Pa)
Wind load resistance
Class C5 (2000Pa)
Acoustics - Rw(C;Ctr)
47(-2;-7) dB
Durability
Class 3 (20000 cycles)
Safety & Security
Burglar resistance
PAS 24
* Performances and properties depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative.
Properties
Max. dimensions & weight
Min. height of vent
300 mm
Max. height of vent
1500 mm
Min. width of vent
500 mm
Max. width of vent
1300 mm
Max. weight of vent
50 kg
Sightlines
Min. frame width (outward opening)
38 mm
Min. frame-vent width (outward opening)
65 mm
Min. width transom profile
56 mm
Profile design slope
25 degrees
Depth frame
78 mm
Depth Vent
68 mm
Depth frame-vent
78 mm
Glazing
Rebate height
18 mm
Glazing method
Dry glazing - Internal glazing - Glazing bead
Min. glass thickness - frame/element
16 mm
Max. glass thickness - frame/element
43 mm
Min. glass thickness - vent
26 mm
Max. glass thickness - vent
43 mm
